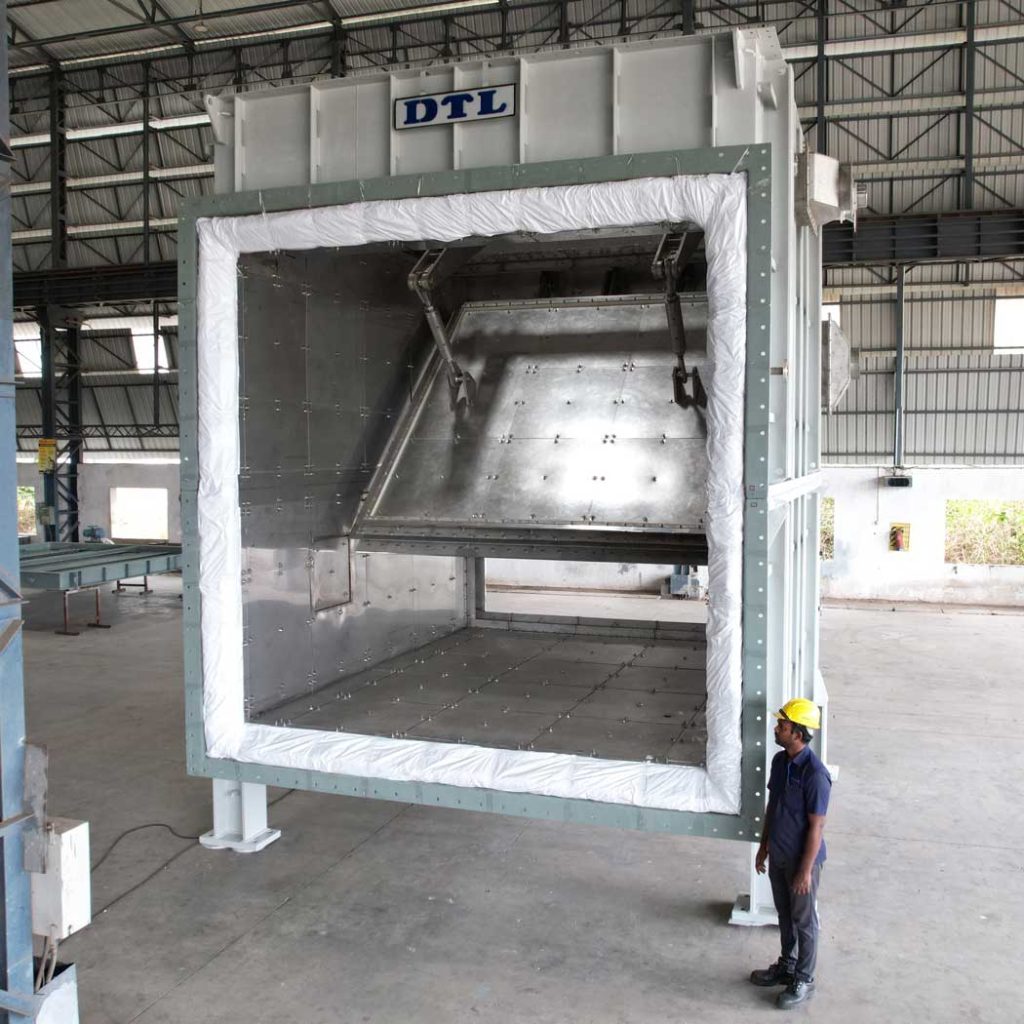

High-Performance Flap Diverter Dampers: The Toggle Arm Advantage
In demanding industrial environments—from Gas Turbine Exhaust systems to Waste Heat Recovery Units (WHRU)—the ability to redirect gas flow with precision and reliability is critical. Damper Technology Ltd (DTL) provides custom-engineered Flap Diverter Dampers designed to handle extreme temperatures and high-velocity flows, ensuring maximum plant efficiency and safety.
While standard diverters offer basic flow control, DTL’s specialized Toggle Arm design elevates performance by providing superior sealing force and mechanical longevity.
What is a Flap Diverter Damper?
A Flap Diverter (or T-Diverter) is a three-way valve used to direct exhaust gases either to a heat recovery system or through a bypass stack to the atmosphere. Unlike multi-louvre dampers, a flap diverter uses a single reinforced blade pivoting 90 degrees. This design minimizes pressure drop and simplifies the flow path, making it the industry standard for gas turbine applications.
The Benefits of Flap Diverters
Choosing a flap diverter for your process offers several key operational advantages:
- Low Pressure Drop: The single-blade design provides a clear flow path, reducing turbulence and backpressure on the turbine.
- Rapid Changeover: Engineered for fast actuation, allowing for quick transitions between bypass and recovery modes.
- Thermal Flexibility: Specifically designed to withstand rapid temperature fluctuations without warping or binding.
- Space Efficiency: The “T-configuration” allows for a compact footprint compared to installing multiple individual dampers.
Why Choose the Toggle Arm Design?
At DTL, we often recommend the Toggle Arm (or Toggle Linkage) mechanism for high-specification projects. This design utilizes a unique kinematic linkage system to move the flap blade.
1. Superior Sealing Force
The toggle arm mechanism provides a mechanical advantage as the blade approaches the seat. As the arm “toggles” into the closed position, it exerts a massive, uniform force across the seal perimeter, ensuring higher sealing efficiency—up to 100% when used with seal air systems.
2. Vibration Resistance
In high-velocity gas flows, flap blades can be prone to “flutter.” The toggle arm provides a rigid mechanical lock in the end positions, significantly reducing vibration and wear on the drive train and bearings.
3. Compensation for Thermal Expansion
Industrial processes involve extreme heat. The toggle arm design is inherently expansion-compensated, allowing the damper body and blade to expand at different rates without compromising the seal integrity or risking mechanical seizure.
4. Reduced Actuator Load
Because the linkage provides mechanical leverage at the point of closure, smaller, more efficient actuators can be used to achieve the necessary sealing pressures, reducing overall energy consumption and maintenance costs.
Applications & Industries
Our Flap Diverters with Toggle Arm technology are the preferred choice for:
- Gas Turbine Exhaust Systems: Managing high-temperature bypass for HRSG and Cogeneration.
- WHRU (Waste Heat Recovery Units): Optimizing energy capture in Oil & Gas and Marine sectors.
- FGD & SCR Systems: Directing flow in Flue Gas Desulfurization and Selective Catalytic Reduction processes.
- Marine Scrubbers: Reliable flow diversion in harsh, corrosive maritime environments.
Custom Engineering & Technical Specs
Every DTL Flap Diverter is manufactured to order to suit your specific project requirements.
- Materials: Carbon steel, Stainless Steel (304, 316, 321, 310), Duplex, and High-Nickel Alloys.
- Sealing Options: Metal-to-metal, tadpole seals, or twin-seal arrangements with seal air for 100% isolation.
- Actuation: Pneumatic, Electric, or Electro-Hydraulic, complete with manual override capabilities.
- Global Standards: Designed and manufactured to meet international engineering standards including ASME and CE requirements.
Why Damper Technology Ltd?
With manufacturing capabilities across the UK, North America, Europe and India, DTL combines global reach with specialist engineering expertise. Our consultative approach ensures that your Flap Diverter isn’t just a piece of hardware, but a precision-engineered solution tailored to your process conditions.
Some technical terms you might hear relating to diverters.
Fabricated
Unlike valves, dampers are generally designed and fabricated to order, according to your application.
Actuator
The device used to operate the damper. We provide pneumatic, electric, hydraulic or manual actuation.
Blade Seals
Damper blades are sometimes fitted with metallic seals to improve the sealing efficiency of the damper.
Toggle Arm
The special linkage system designed to move the flap blade with increased efficiency and reduced torque.
Our product range of industrial air dampers covers a wide range of applications in many different industries because all of our dampers are designed and manufactured to meet your project specifications and process conditions including extreme high temperature applications, elevated pressures which may fall under the pressure equipment directive (PED), aggressive and / or hazardous environments such as offshore installations, and corrosive process applications such as scrubbers and sulphuric acid plants. And if your dampers form part of a structure we are able to design and manufacture to EN1090 Execution Class 3. Whatever your application, as a world renowned industrial dampers manufacturer we can tailor our products to meet your requirements.
